PATIO GLAZING SYSTEM

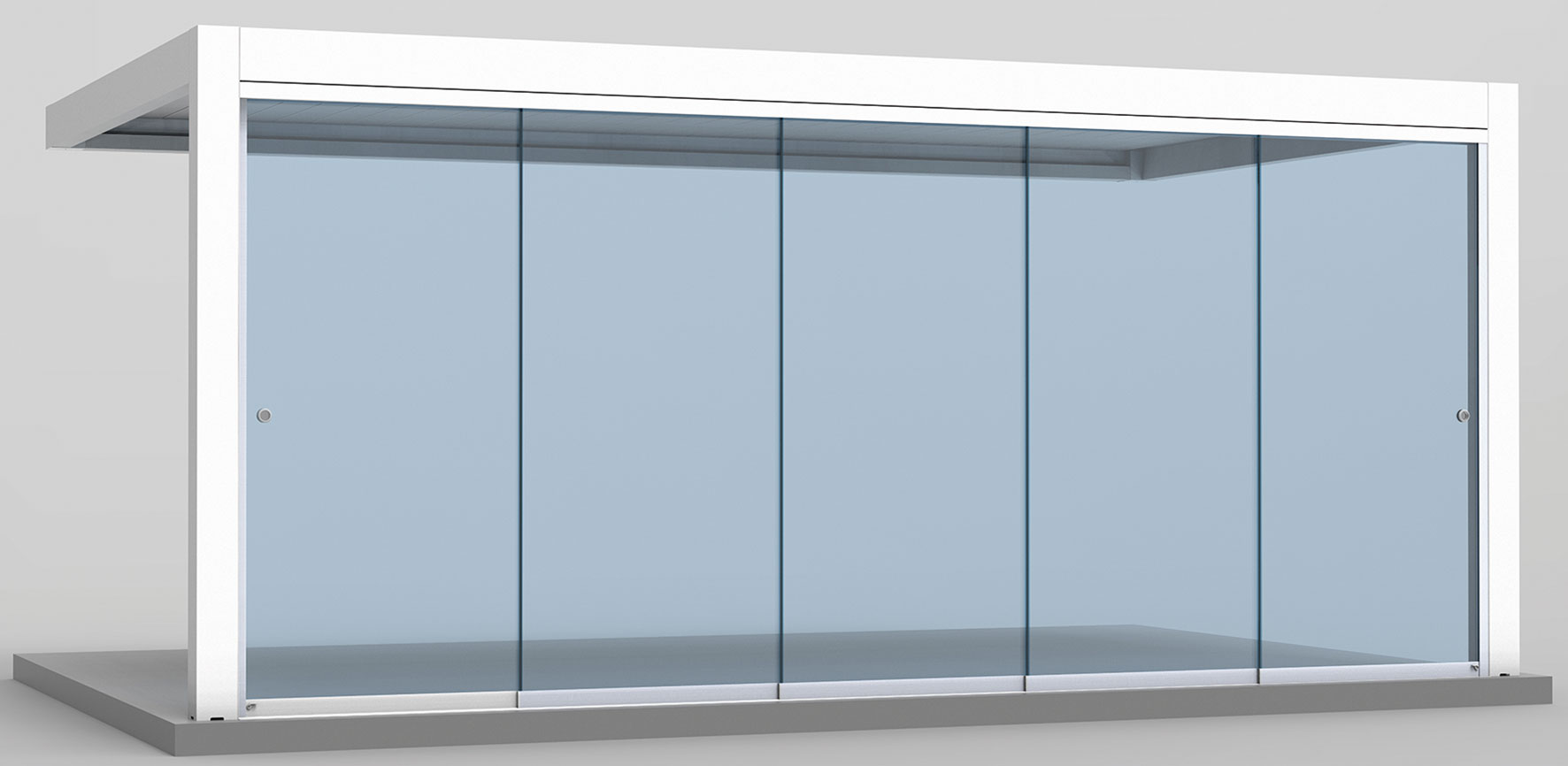

Sliding and folding systems are the best available option for enclosing terraces as well as for adding extra living space to your home or business in a modern way and without giving up the view.

Applications

Seeglass sliding and folding systems are designed for residential areas and businesses, where extra useable space needs to be achieved and where to comfortable and aesthetic design are important.

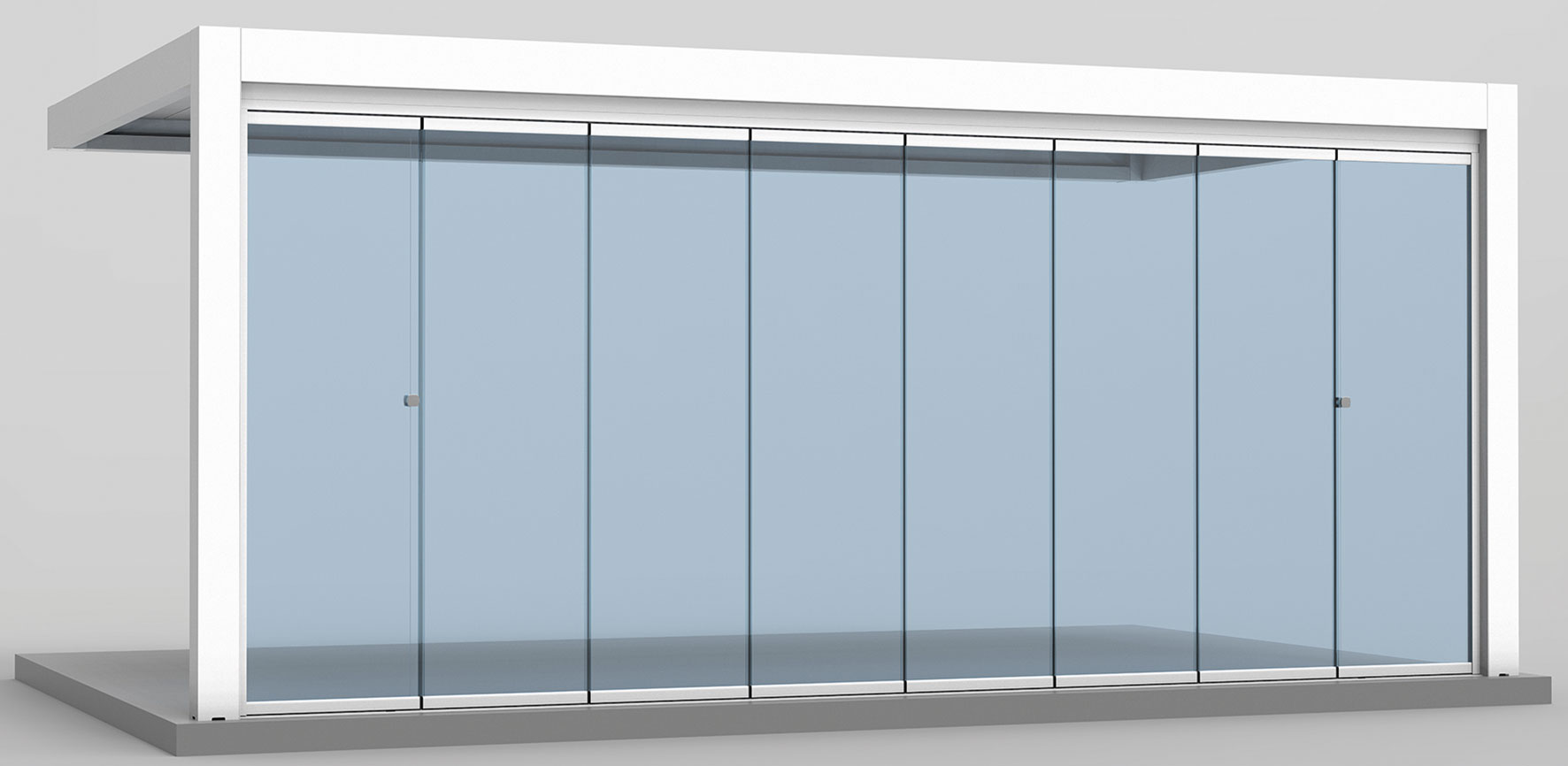

pergolas-glazing-systems-2

Combining with Pergola

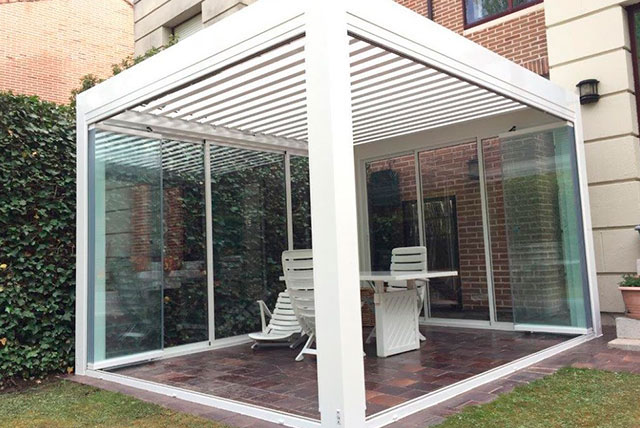

pergolas-glazing-systems-3

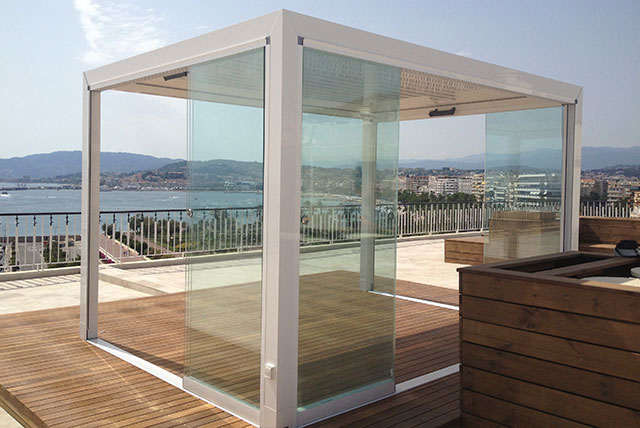

SeeGlass enclosures are a perfect complement for the bioclimatic pergola SeeSky as these two products can be combined and offer a full and optimum enclosing solution.

SeeGlass Run glass enclosure is an ideal combination with sun protection system such as SeeSky BIO for high level of elegance and modern design.

Accessories and Components

High resistance rollers and hinges

High resistance rollers and hinges

Integrated metallic opening system

Integrated metallic opening system

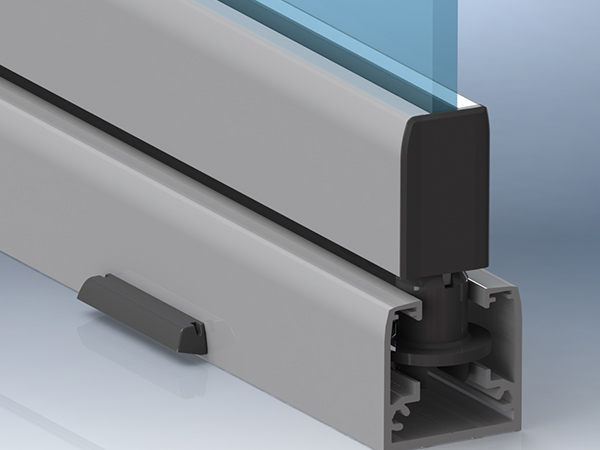

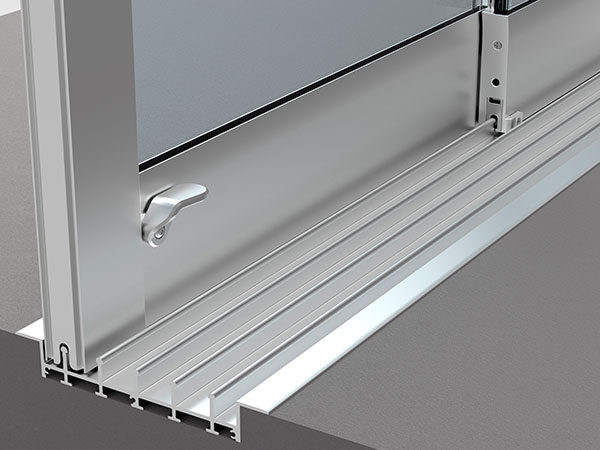

Standard and embedded lower profile option

Standard and embedded lower profile option

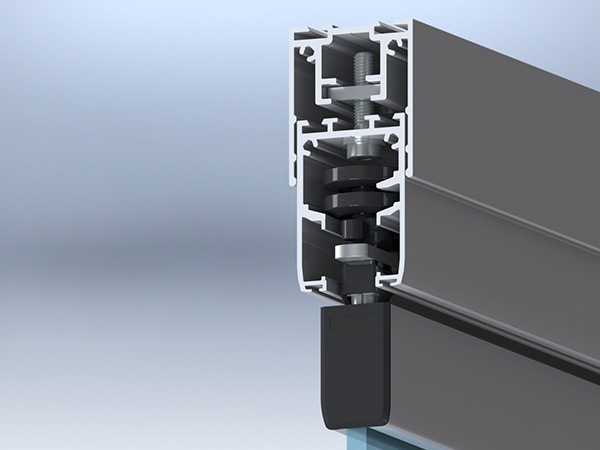

Top telescopic profile for height adjustments on profile and panels

Top telescopic profile for height adjustments on profile and panels

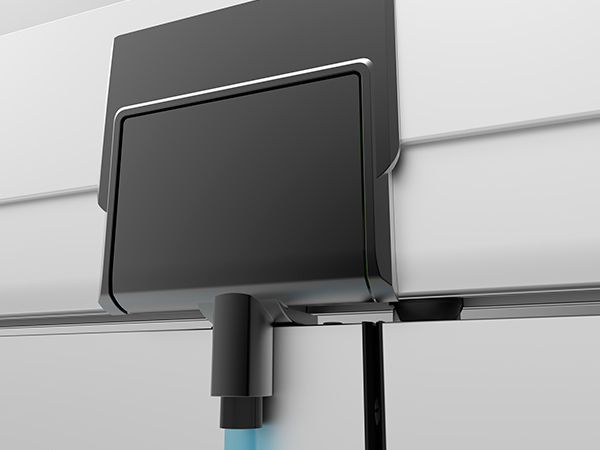

Specially designed overlapping caps for extra water tightness

Lateral profile and covers for possible adjustment and extra water and wind proof

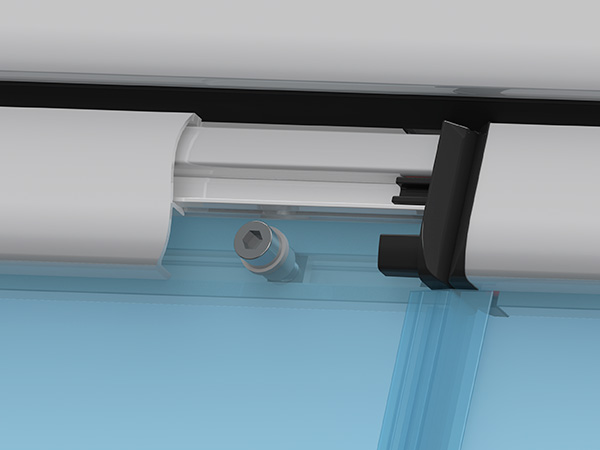

Glass screwed to profiles

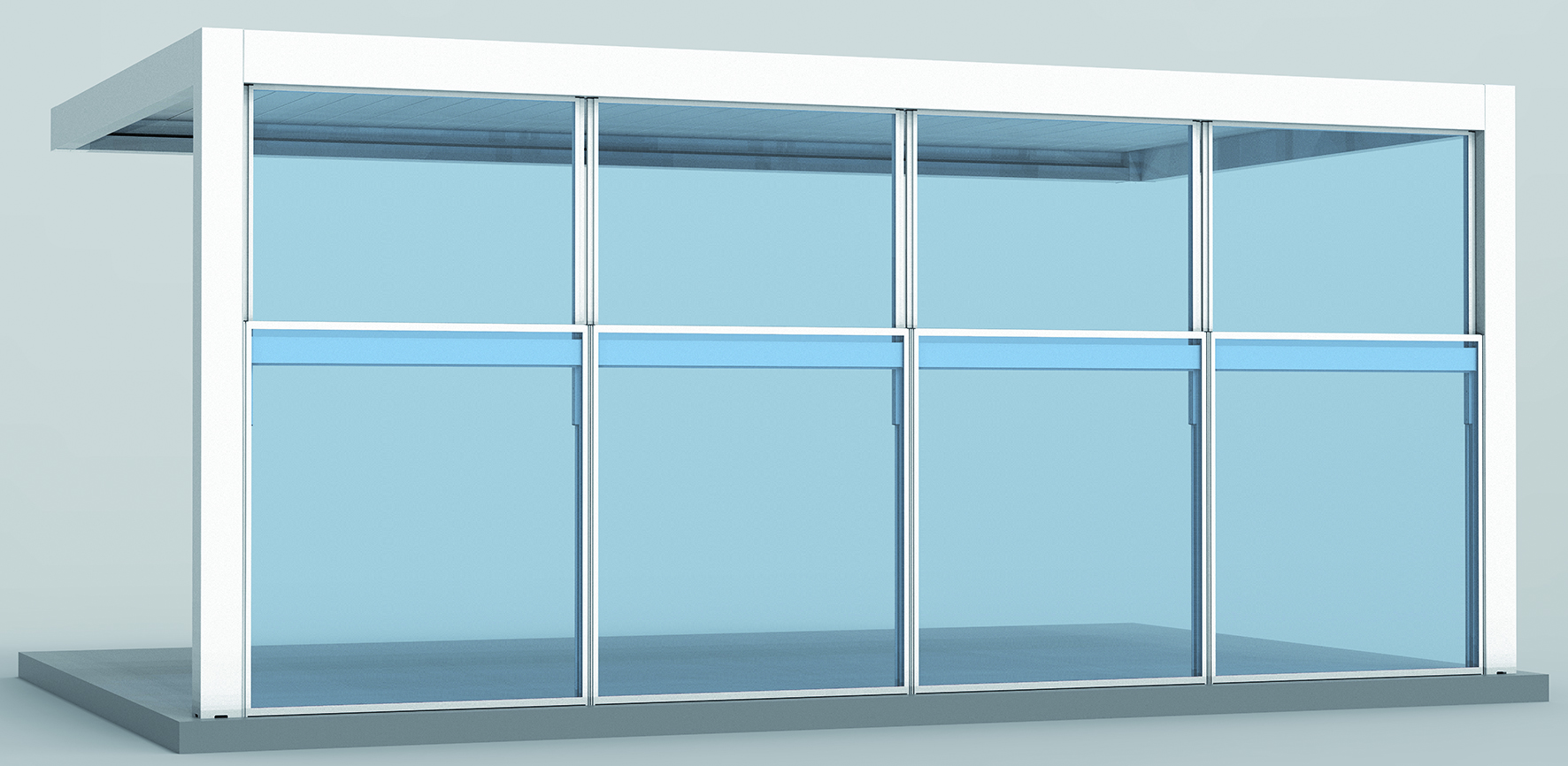

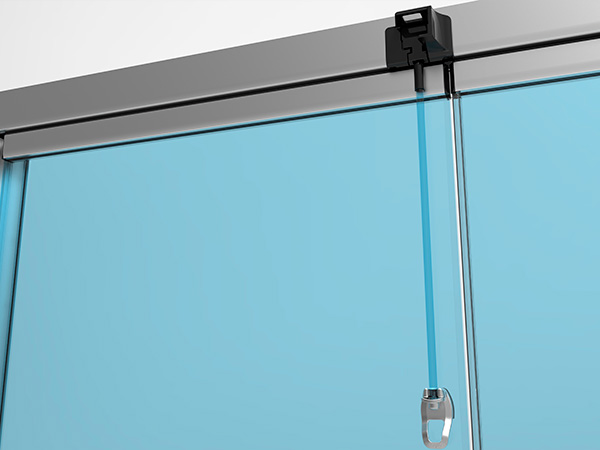

Intermediate opening option for ventilation

Intermediate opening option for ventilation

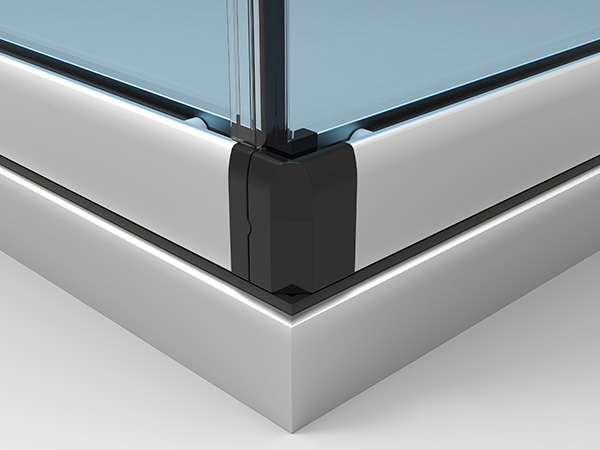

Angle closing caps

Angle closing caps

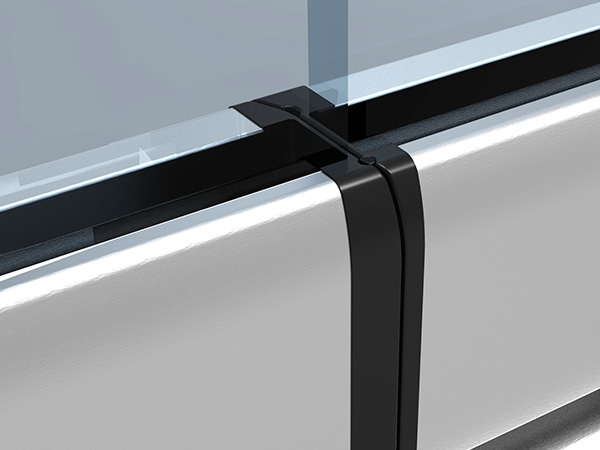

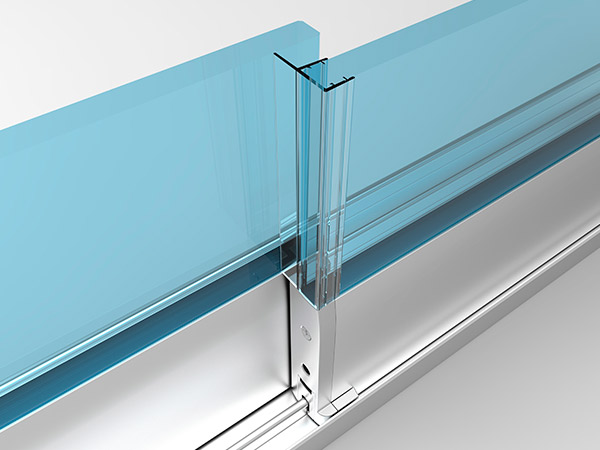

For improving water tightness of our systems, we are adding high quality gaskets to cover the gap between panels.

For improving water tightness of our systems, we are adding high quality gaskets to cover the gap between panels.

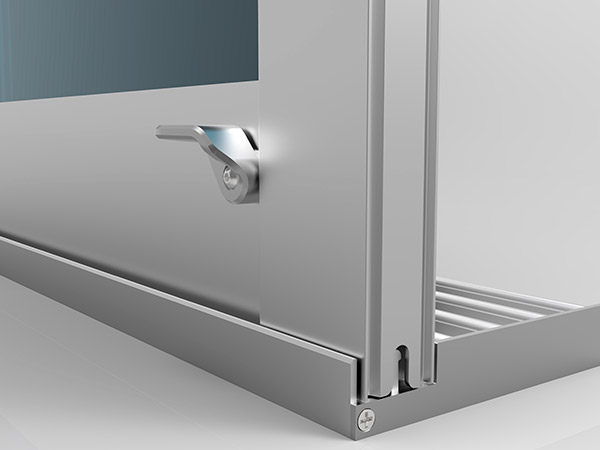

Standard opening allows us to open the system only from the inside.

Standard opening allows us to open the system only from the inside.

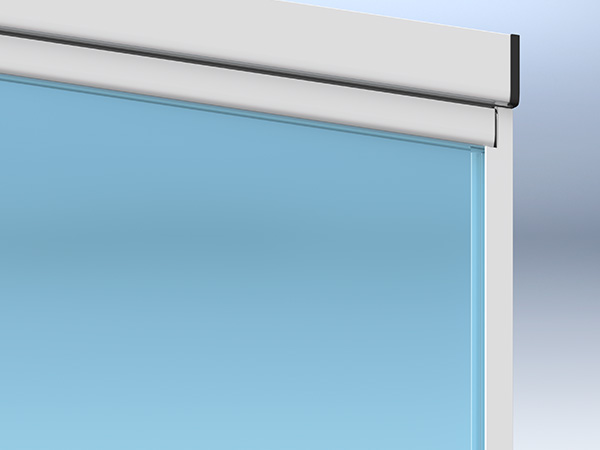

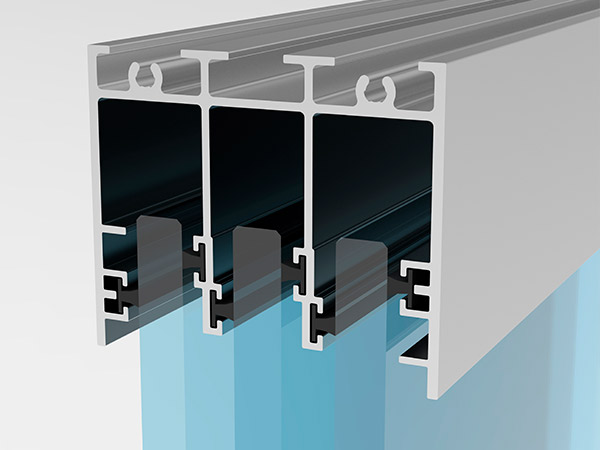

Upper profile includes inside brush seal.

Overlapping caps available for central enclosure

Overlapping caps available for central enclosure.

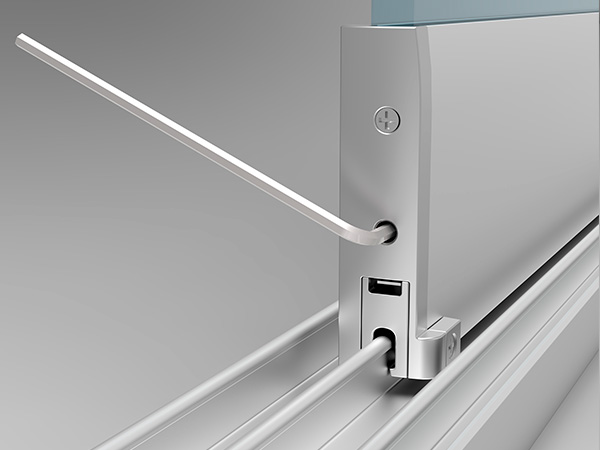

Quick and simple panel regulation (up to 5 mm).

Angle closing caps

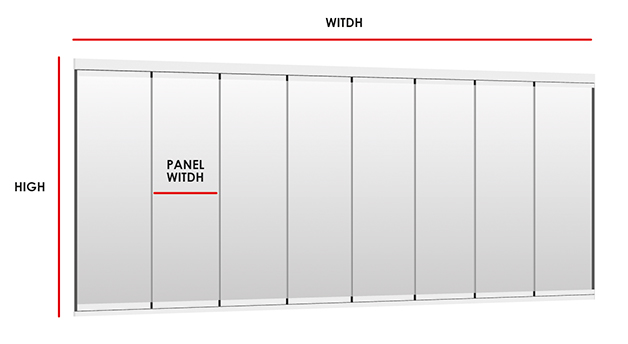

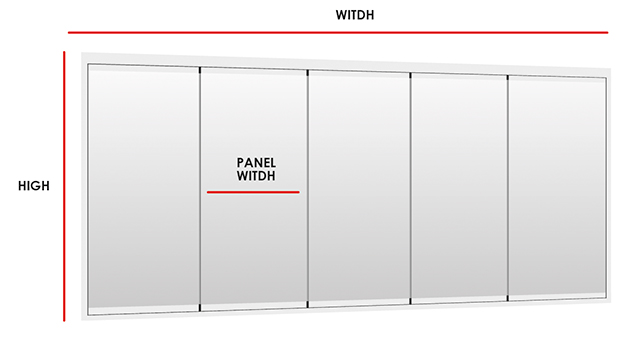

Panel measurements

GLASS THICKNESS HEIGHT WIDTH WIDTH PANEL
6mm 1700mm LIMITLESS 800 mm / panel
8mm 2500mm LIMITLESS 800 mm / panel
10mm 3000mm LIMITLESS 800 mm / panel
12mm 3000mm LIMITLESS 800 mm / panel
Panel measurements
GLASS THICKNESS MAX. HEIGHT MAX. WIDTH MAX. WIDTH PANEL
10mm 3000mm LIMITLESS 1100 mm / panel
8mm 2300mm LIMITLESS 1100 mm / panel
Panel measurements

Available configurations

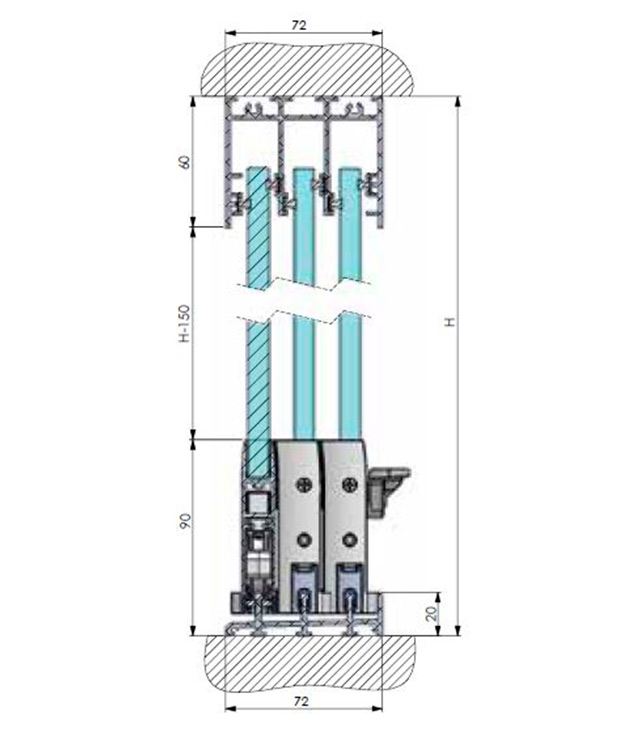

3 Rails

3 Rails

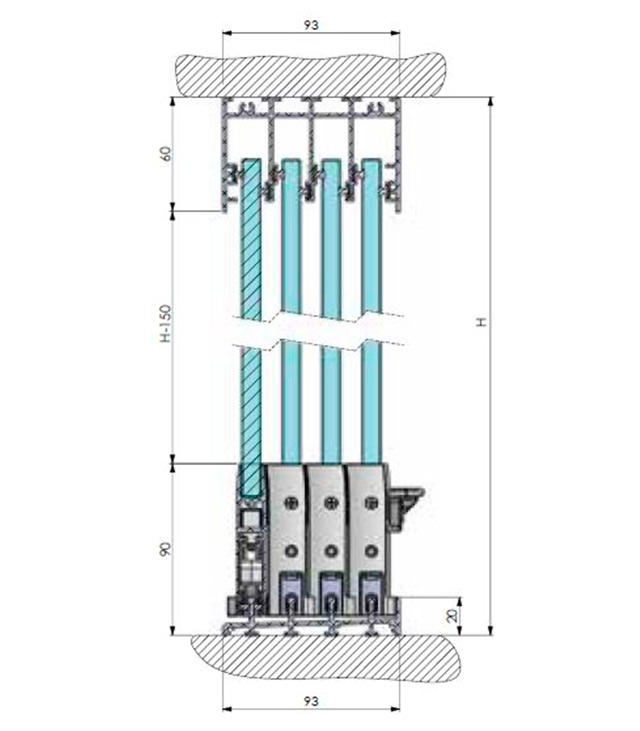

4 Rails

4 Rails

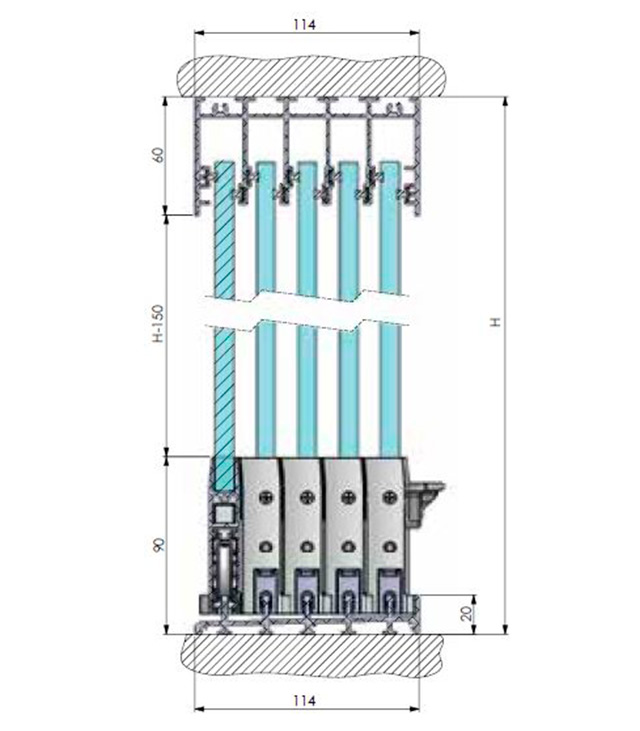

5 Rails

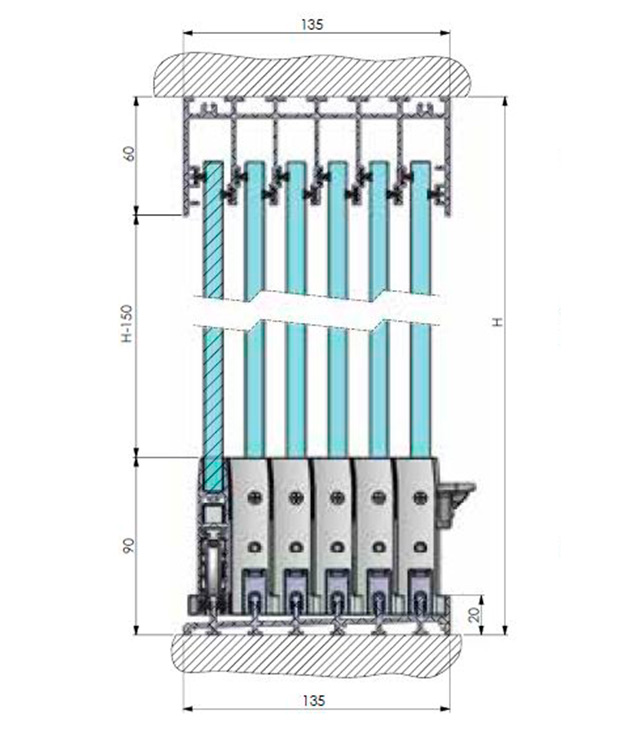

6 Rails

6 Rails
